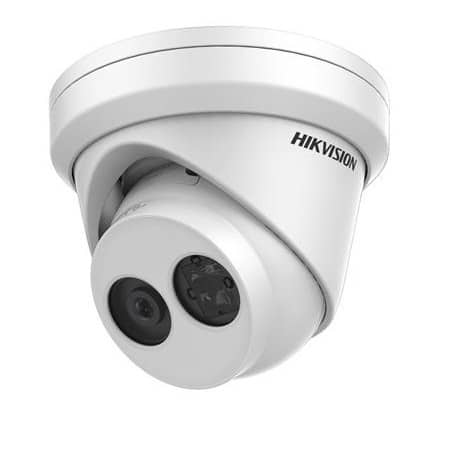

Hikvision 4Megapixel Acusense WDR Turret Netwerk Camera met vaste lens, IR led, IP67, 2,8 mm, ingebouwde microfoon

199.00

Op voorraad

1/3Inch Progressive CMOS, ICR,
kleur : 0.005 Lux @ (F1.6, AGC ON)
0 Lux met IR, 2688 x 1520@25 fps
2.8 mm/F1,6 lens, IP67, DC12V en PoE
120dB WDR, 3D DNR, BLC, motion en analyse(2)
IR tot 30m, metalen behuizing, ondersteunt Mobile Monitoring
H.264/ H.265, ingebouwde microfoon
met vals alarm filter door doelclassificatiesysteem( personen en voertuigen)

This item: Hikvision 4Megapixel Acusense WDR Turret Netwerk Camera met vaste lens, IR led, IP67, 2,8 mm, ingebouwde microfoon

Op voorraad

199.00
199.00
1 × Ubiquiti Gigabit PoE Adapter 24W

Op voorraad

24.95

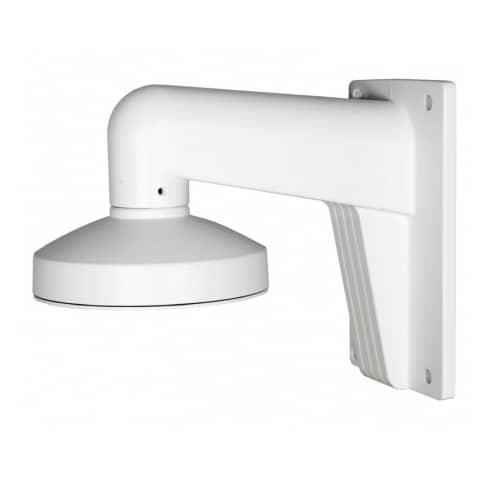

1 × Muurbeugel, DS-1273ZJ-130-TRL

Op voorraad

39.95
Vergelijk
Artikelnummer: DS-2CD2343G2-IU Categorieën: , , ,

Specification.:

Camera

Image Sensor 1/3″ Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
Aperture F1.6
Lens Mount M12

DORI
DORI
2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m

Illuminator

IR Range Up to 30 m
Wavelength 850 nm

Video

Max. Resolution 2688 × 1520
Main Stream
50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25 fps (640 × 480, 640 × 360)
60Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Audio

Environment Noise Filtering -U: Yes
Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
-U:
64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)
/32-192Kbps(MP2L2)/8-320Kbps(MP3)

Network

Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto
network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+


Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser

Interface

Built-in Microphone -U: yes
On-board Storage Built-in micro SD, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm,
exception
Face Detection Yes

Deep Learning Function

Perimeter Protection
Line crossing detection, intrusion detection
Supports human and vehicle targets classification

General

Linkage Method
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger
capture, Email
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Software Reset Yes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC } 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Consumption and Current
12 VDC, 0.5 A, max. 6 W
PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 7 W
Power Interface O5.5 mm coaxial power plug
Material Aluminum alloy body
Camera Dimension O127.3 × 95.9 mm (O5.01″ × 3.78″)
Package Dimension 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
Camera Weight Approx. 600 g (1.3 lb.)
With Package Weight Approx. 816 g (1.8 lb.)

Extra informatie

Kijkhoek

2,8mm – kijkhoek van 103°

Microfoon

Ja

Categorie

Hikvision 4Megapixel Acusense WDR Turret Netwerk Camera met vaste lens, IR led, IP67, 2,8 mm, ingebouwde microfoon
