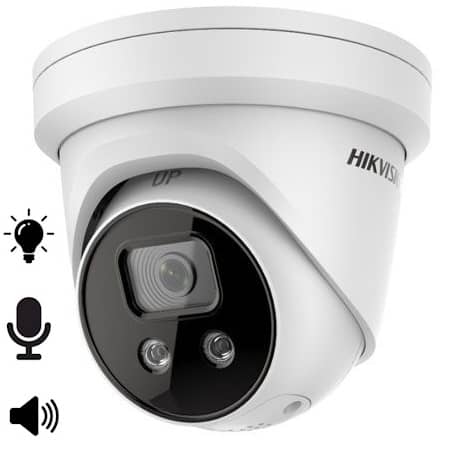

Hikvision, DS-2CD2386G2-ISU/SL, 8MP/4K Camera met microfoon en speaker, 30m IR, WDR, Ultra Low Light

299.00

Op voorraad

  • Nieuwe Hikvision AcuSense 2.0 (2e Generatie)
  • 4K 8MP resolutie
  • 2.8mm lens met een kijkhoek van 111° horizontaal
  • UItstekende resultaten in het donker dankzij de DarkFighter technology
  • Helder plaatje dankzij de tegenlichtcompensatie van 120dB true WDR technologie
  • Efficiente H.265+ compressie technologie
  • Valse alarmen vermindering door personen & voertuigen classificatie d.m.v. deep learning
  • Actieve ‘strobe light’ en audio notificatie voor preventief waarschuwen
  • Ingebouwde 2-weg audio optie
  • Water- en vuilafstotend conform IP67 normering
Clear
Vergelijk
Artikelnummer: DS-2CD2386G2-ISU/SL Categorieën: ,

Camera

  • Image Sensor: 1/1.8″ Progressive Scan CMOS
  • Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • Day &Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • WDR: 120 dB

Lens

  • Lens: Fixed lens, 2.8/4 mm
  • Aperture: F1.6
  • FOV:

    2.8 mm, horizontal FOV: 102° , vertical FOV: 55° , diagonal FOV: 120°
    4 mm, horizontal FOV: 87.1° , vertical FOV: 47.4° , diagonal FOV: 101.8°

  • Lens MountM16

Illuminator

  • IR Range Up to 30 m
  • Wavelength 850 nm

Deep Learning

  • Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification)

Video

  • Max. Resolution3840 × 2160
  • Main Stream

    50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720)
    60Hz: 20fps (3840 × 2160, 3072 × 1728), 30fps (2688 × 1520,1920 × 1080, 1280 × 720)

  • Sub Stream
    50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
    60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream
    50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
    60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
  • Video Compression
    Main stream: H.265+/H.264+/H.265/H.264
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • Scalable Video Coding (SVC)H.264 and H.265 encoding support

Audio

  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
  • Region of Interest: 1 fixed region for main stream, sub-stream and third stream
  • Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, alarm output, audible warning, trigger capture


  • Image Enhancement: BLC, HLC, 3D DNR
  • Image Setting: Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
  • Day/Night Switch: Day/Night/Auto/Schedule

Network

  • Network Storage: microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS
  • API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Simultaneous Live View: Up to 6 channels
  • User/HostUp to 32 users, 3 levels: administrator, operator and user
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser
    Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Interface

  • Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio: Built-in microphone
  • On-board Storage: Built-in micro SD slot, up to 256 GB

Approval

  • EMCF: CC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013)

General

  • Web Client Language,32 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
  • Reset: Reset via reset button on camera body, web browser and client software
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3)
  • Power Consumption and Current: 12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
  • Material: Metal
  • Dimensions
    Camera: Φ 138.3 × 126.3 mm
    With package: 170 × 170 × 150 mm
  • Camera: approx. 740 g
    With package: approx. 1060 g

Extra informatie

Resolutie

8 Megapixel 4K

Kijkhoek

2,8mm – Kijkhoek van 111°, 4mm – Kijkhoek van 87°

Microfoon

Ja

Categorie

Hikvision, DS-2CD2386G2-ISU/SL, 8MP/4K Camera met microfoon en speaker, 30m IR, WDR, Ultra Low Light
