ColorVu IP set, 24/7 Fulltime kleur, 4 Dome’s met Audio + 1TB HDD

1,299.00

Op voorraad

Deze Kit bevat.:

  • 1x Hikvision DS-7604NI-K1/4P NVR Plug&Play 4-kanalen, incl. ingebouwde PoE switch
  • 4x Hikvision ColorVu 2.0, DS-2CD2347G2H-LISU/SL 4MP IP Turret, 2.8mm, 130dB WDR, Audio
  • 1 x 1TB Seagate Skyhawk Harde Schijf 3,5″ SATA
  • 4 x RJ45 kabel 20.00m Cat6 UTP
  • 1 x LAN netwerk kabel
  • 1 x HDMI Kabel 3.00m
  • 1 x Smartphone App software / PC software
  • 1 x USB muis
Dit artikel: ColorVu IP set, 24/7 Fulltime kleur, 4 Dome’s met Audio + 1TB HDD

Op voorraad

1,299.00
1,299.00
39.95

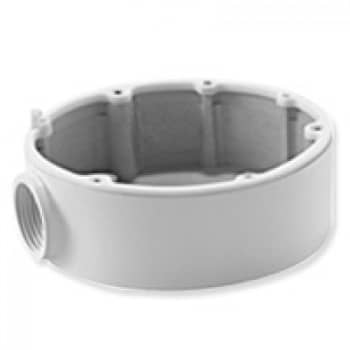

Montagebox, DS-1280ZJ-DM21

Op voorraad

24.95
29.95
Vergelijk
Artikelnummer: 4MP ColorVu Dome IP Set van 4 Categorieën: , ,

1x Hikvision DS-7604NI-K1/4P NVR Plug&Play 4-kanalen, incl. ingebouwde PoE switch

Video/Audio Input

IP video input: | 4-ch
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ)

Network

Incoming bandwidth: | 40Mbps
Outgoing bandwidth: | 80Mbps

Video/Audio Output

HDMI Output: | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: | 1-ch, RCA (Linear, 1kΩ)
VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz


Decoding

Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: | 4-ch@1080P


Hard Disk

SATA: | 1 SATA-interface voor 1 HDD
Capaciteit: tot 6 TB capaciteit voor elke HDD
Externe Interface
– Netwerk Interface: | 1 RJ-45 10 / 100 Mbps selfadaptive
Ethernet-interface
USB-Interface: | 2, USB2.0

POE

Interface: | 4 onafhankelijke 10 /100 Mbit PoE
Ethernet-interfaces

Algemeen

Voeding: | 48 VDC
Verbruik(zonder harde schijf en POE): | ≤ 10 W
Het werk Temperatuur: – | 0 ° C ~ +40 ºC
Werkende Vochtigheid: | 10 % ~ 90 %
Chassis: | 315 mm chassis
Dimensies: | 315 × 240 × 48 mm
Gewicht(zonder HDD): | ≤ 1 kg

4x Hikvision ColorVu 2.0, DS-2CD2347G2H-LISU/SL 4 MP IP-Torentje, 2.8 mm, 130dB WDR, Audio

Camera

  • Image Sensor1/1.8″ Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationColor: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

  • Lens TypeFixed focal lens, 2.8 mm
  • Focal Length & FOV

    2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°

  • Lens MountM16
  • Iris TypeFixed
  • ApertureF1.0
  • Depth Of Field

    2.8 mm: 3.3 m to ∞

    4 mm: 3.8 m to ∞

DORI

  • DORI

    2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

    4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm

Video

  • Main Stream

    50 Hz:

    25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz:

    24 fps (3840 × 2160)

    30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.

  • Video Compression

    Main stream: H.265/H.264/H.264+/H.265+,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264,

    *Third stream is supported under certain settings.

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio

  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio TypeMono sound
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes

Network

  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • ClientiVMS-4200,Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


  • Image Parameters SwitchYes
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Image EnhancementBLC,HLC,3D DNR,Defog
  • SNR≥ 52 dB
  • Wide Dynamic Range (WDR)130 dB
  • Privacy Mask4 programmable polygon privacy masks

Interface

  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage

    Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

  • Built-In MicrophoneYes,1 built-in microphone
  • Built-In SpeakerMax. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
  • Audio

    1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

    1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Reset KeyYes

Event

  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
  • Smart Event

    Scene change detection

  • Deep Learning Function
  • Face CaptureYes
  • Perimeter Protection

    Line crossing, intrusion, region entrance, region exiting

    Support alarm triggering by specified target types (human and vehicle)

  • General
  • Power

    12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: IEEE 802.3af, Class 3, max. 10.5 W

  • Material

    Cover: metal, main body: metal

  • DimensionØ138.3 mm × 115.4 mm (Ø5.4″ × 4.5″)
  • Package Dimension170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″)
  • WeightApprox. 820 g (1.8 lb.)
  • With Package WeightApprox. 1316 g (2.9 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

  • EMC

    CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment CE-RoHS: 2011/65/EU
  • Protection IP67: IEC 60529-2013

1 x 1TB Seagate Skyhawk Harde Schijf 3,5″ SATA

4 x RJ45 kabel 20.00m Cat6 UTP

1 x LAN netwerk kabel

1 x HDMI Kabel 3.00m

1 x Smartphone App software / PC software

1 x USB muis

Extra informatie

Microfoon

Ja

24/7 Kleurenbeeld

Ja

Categorie

ColorVu IP set, 24/7 Fulltime kleur, 4 Dome’s met Audio + 1TB HDD

1,299.00
