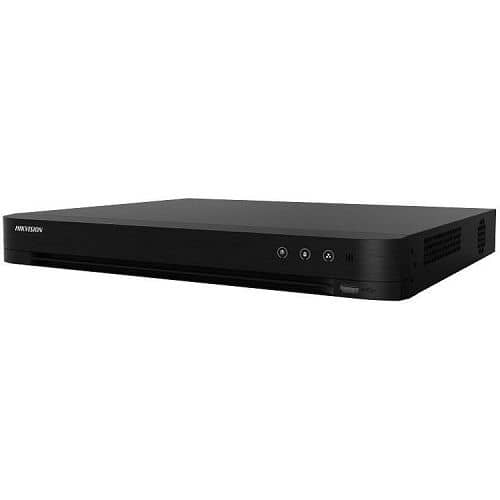

8-kanaals AcuSense Recorder/DVR tot 5 Megapixel, IDS-7208HUHI-M2/S(C), 2HDD Slot

449.00

Op voorraad

  • 8 kanalen en 2 HDD’s 1U AcuSense DVR
  • Vermindering van valse alarmen door classificatie van mens en voertuig op basis van deep learning
  • Efficiënte H.265 pro+ compressietechnologie
  • Codeervermogen tot 8 MP @ 8 fps, 5 MP @ 12 fps
  • 5 signalen adaptief ingevoerd (HDTVI/AHD/CVI/CVBS/IP)
  • Er kunnen maximaal 32 netwerkcamera’s worden aangesloten.
Vergelijk
Artikelnummer: IDS-7208HUHI-M2/S(C) Categorie:

Recording

  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionMain stream:
  • 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps
  • 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
  • Sub-stream:
  • WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Bitrate32 Kbps to 10 Mbps
  • Dual-StreamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps

Video And Audio

  • IP Video Input4-ch (up to 12-ch)
  • Up to 8 MP resolution
  • Enhanced IP mode on:
  • 8-ch (up to 16-ch), each up to 4 Mbps
  • Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDMI OutputHDMI:1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA:1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz
  • HDMI/VGA simultaneous output
  • CVBS InputPAL/NTSC
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),
  • resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Synchronous Playback8-ch
  • HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
  • AHD Input5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network

  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection64
  • Network Interface1,RJ45 10M/100M/1000M self-adaptive
  • Ethernet interface
  • Auxiliary Interface
  • SATA2 SATA interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB Interface1 × USB 2.0;
  • 1 × USB 3.0
  • Alarm In/OutN/A

General

  • Power Supply12 VDC
  • Consumption≤ 15 W
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
  • ≤ 2 kg (4.4 lb)
